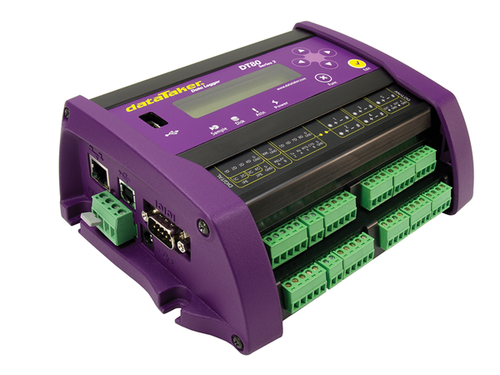

DataTaker DT80-S3

DataTaker DT80 Series 3 technical specifications. Download DataTaker DT80 manual Download Type: General purpose data logger. Channels: 5 - 15. Expandable: Yes - to expandable to 200 channels. Inputs: Voltage, Current, 4-20mA, Temperature,...

Graphtec GL220

Type: General purpose data logger / Paperless recorder. Channels: 10 (Not expandable). Inputs: Voltage, Current, Temperature, Humidity and Logic I/O. Speed: 10ms to 1hr. Resolution: 16bit. Data Storage: 2GB internal memory or USB device. PC...

Graphtec Battery

Graphtec B-517 Battery Pack Note: Lithium-ion battery packs and batteries sold separately are shipped via road freight only. Due to international freight restrictions on shipping Lithium-ion batteries and battery packs, the Graphtec B-517 battery packs...

USB-A-TO-REDEL4

USB lead, for use with any Electrocorder with a circular 4 pin port AND labelled ‘USB’ or with the USB symbol.

DataTaker DT82E-S3

DataTaker DT82E Series 3 technical specifications. Download DataTaker DT82E manual Download Type: Low channel count data logger. Channels: 2 - 6. Expandable: No. Inputs: Voltage, Current, 4-20mA, Temperature, Humidity, Strain Gauges, Logic &...

Electrocorder EC-7VAR

Electrocorder EC-7VAR Type: Three Phase Voltage & Current Logger + Power Factor on a single phase. Measurements: V, A, PF. Calculations: kW, kWh, kVAR, kVA. Inputs: Voltage - 0V to 500Vrms (Ph – Ph) or 0V to 300Vrms (Ph – N)...

Graphtec GL220 Case

Graphtec GL220 Case Graphtec GL220 Carry Case, plastic with foam insert.

Electrocorder CT-1A

Electrocorder CT-1A The CT-1A series of data loggers are used by varies companies, from facilities management to power management and voltage optimisation companies that need to monitor loads from 0.1 to 100 amps. The CT-1A can be used for energy audits...

Signatrol SL963

The SL963 is a high performance, high quality pressure data logger. A self contained pressure data logger that houses the pressure sensing module, battery and data logging electronics. The SL963 series data loggers are available with either 1/4' BSP or...

Electrocorder AL-2VA

Electrocorder AL-2VA Type: Single Phase Voltage & Current Logger. Measurements/Calculations: V, A, kW, kWh, kVAR, kVA. Inputs: Voltage - 0V to 300Vrms (Ph – N). Current - 0.1A – 13A. Fitted with 10 amp Australian three pin plug...

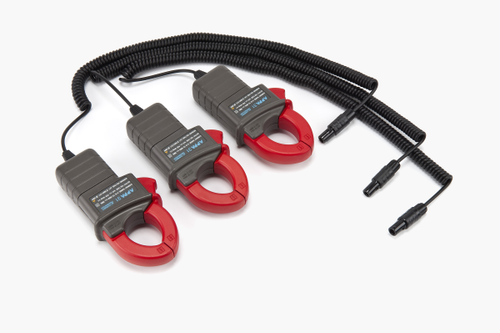

Electrocorder CT-7VAR

Electrocorder CT-7VAR Type: Three Phase Voltage & Current Logger + Power Factor on a single phase. Measurements: V, A, PF. Calculations: kW, kWh, kVAR, kVA. Inputs: Voltage - 0V to 500Vrms (Ph – Ph) or 0V to 300Vrms (Ph – N)...

Electrocorder CT-3A-SY

Electrocorder CT-3A-SY Type: Three Phase Current Logger. Measurements/Calculations: V, A, PF, kW, kWh, kVAR, kVA. Inputs: Current - 1–60 Amps. Sampling rate: Continuous, 16 samples per cycle 800Hz @ 50Hz. Logging rate: 1 sec to 1 hr...

Graphtec GL820

Type: General purpose data logger / Paperless recorder. Channels: 20 - expandable to 200. Inputs: Voltage, Current*, Temperature, Humidity and Logic I/O. Speed: 10ms to 1hr. Resolution: 16bit. Data Storage: 2GB internal memory or USB device. PC...

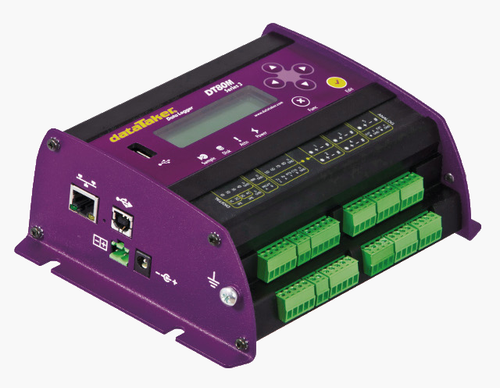

DataTaker DT80M-S3

DataTaker DT80M Series 3 technical specifications. Download DataTaker DT80M manual Download Type: General purpose data logger. Integrated Modem: Yes Channels: 5 - 15. Expandable: Yes - to expandable to 200 channels. Inputs: Voltage, Current,...

DataTaker DT85-S3

DataTaker DT85 Series 3 technical specifications. Download DataTaker DT85 manual Download Type: General purpose data logger. Channels: 16 - 48. Expandable: Yes - to expandable to 800 channels. Inputs: Voltage, Current, 4-20mA, Temperature,...

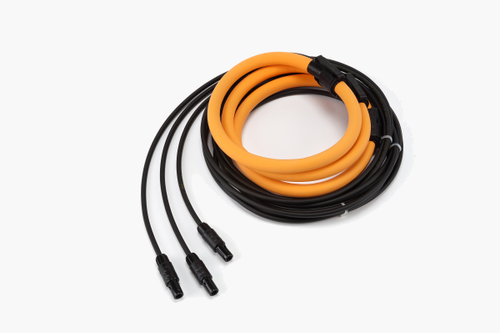

EC-7VAR-RS

Electrocorder EC-7VAR-RS Type: Three Phase Voltage & Current Logger + Power Factor on a single phase. Measurements: V, A, PF. Calculations: kW, kWh, kVAR, kVA. Inputs: Voltage - 0V to 600Vrms (Ph – Ph) or 0V to 350Vrms (Ph – N)...

Panel Mount Display

Contains a 2-line/16-character back-lit liquid crystal display, 4 dual-purpose function buttons, a function-shift button, 3 warning indicators and a buzzer. Display provides information about dataTaker status, channel data, alarms and memory card...

Memory Card Reader

PC Card (PCMCIA) to PC data transfer DataTaker MCI-04 Memory Card Reader provides high speed access to PC cards using RS232 communication at up to 115,000 baud. MCI-04 includes DeReader software and provides the following functions: Data stored on a...

DataTaker SMSX Modem

The DataTaker SMSX GSM modem is a great way to remotely communicate with your data logger in the field. Lontek has supplied and installed the SMSX modem on various data logging projects in Australia. When connected to a dataTaker data logger the SMSX...

DataTaker DT515 & DT615-S3

Features: Universal channel support Uncomplicated, flexible, powerful programming Vibrating wire gauge support Relay multiplexer (common mode range ±100V) 10 differential / 30 single-ended analog channels 25 samples per second 4 digital...

DataTaker DT505 & DT605-S3

Features: Universal channel support Uncomplicated, flexible, powerful programming Relay multiplexer (common mode range ±100V) 10 differential / 30 single-ended analog channels 25 samples per second 4 digital channels (input or output), 3...

DataTaker DT500 & DT600-S3

Features: Universal channel support Uncomplicated, flexible, powerful programming Solid state multiplexer (common mode range ±3.5V) 10 differential / 30 single-ended analog channels 25 samples per second 4 digital channels (input or...

DataTaker DT50-S3

Features: Universal channel support Uncomplicated, flexible, powerful programming 5 differential / 10 single ended analog channels 25 samples per second 5 digital channels of input or output, 3 high speed digital counter channels Solid state...

DataTaker Channel Expansion Module S3

DataTaker Channel Expansion Module for DT500, DT505, DT515, DT600, DT605 and DT615 data loggers. Features Universal channel support 10 differential / 30 single-ended analogue channels Relay multiplexer (input impedance 1MOhm or >100MOhms...

Graphtec GL1000-GL1100

 Superseded model new model here The Graphtec GL1000 and GL1100 are high speed standalone data loggers with built-in hard disks making them the ideal solution for your next data acquisition task. Graphtec's technology permits ultra high-speed...

Graphtec GL800

Type: General purpose data logger / Paperless recorder. Channels: 20 - expandable to 200. Inputs: Voltage, Current*, Temperature, Humidity and Logic I/O. Speed: 100ms to 1hr. Resolution: 16bit. Data Storage: Internally 5.5 million readings or...

Graphtec GL500A

Graphtec_GL800-500 GL500 Quick Start Guide GL500 Users Manual GL500A Software Users Manual The Graphtec GL500A midi LOGGER Dual is a data logger that is built for speed. With two separate sampling modes, Current and Event, the GL500 can record the...

Graphtec GL200A

Superseded model new model here Type: General purpose data logger / Paperless recorder. Channels: 10 (Not expandable). Inputs: Voltage, Current*, Temperature, Humidity and Logic I/O. Speed: 10ms to 1hr. Resolution: 16bit. Data Storage: Internally...

Graphtec GL200

Superseded model new model here Type: General purpose data logger / Paperless recorder. Channels: 10 (Not expandable). Inputs: Voltage, Current*, Temperature, Humidity and Logic I/O. Speed: 100ms to 1hr. Resolution: 16bit. Data Storage:...

Dent ELITEpro SP

Superseded model new model here Dent ELITEpro SP Specifications. Now with built-in Ethernet Port and option Bluetooth or WiFi communications. Key Features Single or three phase loads for 0-600V (AC or DC) voltages. Measures up to four channels of...

Dent ELITEpro

Dent ELITEpro Specifications. Dent ELITEpro Current Transformers. Single phase or one three phase Delta or Wye loads. Includes three channels of voltage 0-600V ac/dc with leads. Range of optional Current Transformers. User defined recording...

RS232-9D-TO-REDEL4

RS-232 lead, for use with any Electrocorder with a circular 4 pin port AND labelled ‘Serial Port’.   Note: This cable will need a USB to RS232 converter to work with modern computers.

Graphtec MT100

Type: Panel mount Paperless Chart Recorder. Channels: 10 (Not expandable). Inputs: Voltage, Current*, Temperature, Humidity and Logic I/0. Speed: 100ms to 1min. Resolution: 16bit. Data Storage: Internally 4 million readings or External USB device...

Graphtec RIC-114

Graphtec RIC-114 RIC-114 Input Cable, BNC to alligator clip, 1.5metres, Non-isolated.

Graphtec RIC-113

Graphtec RIC-113 RIC-113 input cable, BNC to Banana plug, 1.5metres, Non-isolated.

Dent ElitePro SP - Ex demonstration unit

Included Accessories ELITEpro SP, High voltage leads with FUSED croc clips, Elog software, USB cable, Soft carry case, Australian plug pack, Manuals on CD. Required Current Transformers The ElitePro SP is supplied with basically everything you need to...

PowerScout 3 Plus Ethernet

System Integration The PowerScout 3 Plus (PS3P-E) is a device that needs some form of system integration to work out of the box. The PSP3 can be directly connected via MODBUS to a data logger such as the DataTaker DT80 or DT82I, you could connect the...

PowerScout 3 Plus Serial

System Integration The PowerScout 3 Plus (PS3P-I) is a device that needs some form of system integration to work out of the box. The PSP3 can be directly connected via MODBUS to a data logger such as the DataTaker DT80 or DT82I, you could connect the...

Electrocorder CT-3A-RS

Electrocorder CT-3A-RS - now with Dual Range! The new Range Select button allows you to choose between two measurement ranges 1-60 Amps & 4–400 Amps. per phase. Type: Three Phase Current Logger. Measurements/Calculations: V, A, PF,...

Electrocorder EC-3A-RS

Electrocorder EC-3A-RS - now with Dual Range! The new Range Select button allows you to choose between two measurement ranges 4-400 Amps & 20–3000 Amps per phase. Type: Three Phase Current Logger. Measurements/Calculations: V, A, PF,...

Electrocorder EC-3A-1K

Electrocorder EC-3A-1K Type: Three Phase Current Logger. Measurements/Calculations: V, A, PF, kW, kWh, kVAR, kVA. Inputs: Current - 10–1000 Amps. Sampling rate: Continuous, 16 samples per cycle 800Hz @ 50Hz. Logging rate: 1 sec to 1...

Electrocorder CT-3A-TD

Electrocorder CT-3A-TD Type: Three Phase Current Logger. Measurements/Calculations: V, A, PF, kW, kWh, kVAR, kVA. Inputs: Current - 6–400 Amps. Sampling rate: Continuous, 16 samples per cycle 800Hz @ 50Hz. Logging rate: 1 sec to 1 hr...

ACR Systems SRP-003-KIT-2

ACR Systems SRP-003-5V-KIT-2 Kit includes: SRP-003-5V-128K data logger. Three CT-253 current transducers. TrendReader 2 software and IC102 USB cable. Small cary case. The SmartReader Plus 3 easily records AC Current and Voltage (requires...

ACR Systems SRP-003-KIT-1

ACR Systems SRP-003-5V-KIT-1 Kit includes: SRP-003-5V-128K data logger. Three CT-153 current transducers. TrendReader 2 software and IC102 USB cable. Small cary case. The SmartReader Plus 3 easily records AC Current and Voltage (requires...

Graphtec B-537

Graphtec B-537 Up to 200 isolated channels with multifunction input The GL820 is fitted with 20 channels as standard but can be expanded from 20 to 200 channels with the optional B-537 and B-538 expansion modules.   20 Ch 40...

Graphtec B-538

Graphtec B-538 Up to 200 isolated channels with multifunction input The GL820 is fitted with 20 channels as standard but can be expanded from 20 to 200 channels with the optional B-537 and B-538 expansion modules.   20 Ch 40...

DataTaker CANgate

The dataTaker CANGate CAN to ASCII gateway filters and converts CAN (Controller Area Network) and GPS (Global Positioning System) data to serial ASCII data. It has been designed to capture the real-time data available on CAN and GPS networks and pass...

Signatrol SL960-DATA

SL960-DATA Standard communication interface and software for the SL963 pressure data logger.

Electrocorder EC-3V

Electrocorder EC-3V Type: Three Phase Voltage Logger. Measurements/Calculations: Voltage. Inputs: Voltage - 30V to 300VAC (Ph – N). Sampling rate: Continuous, 16 samples per cycle 800Hz @ 50Hz. Logging rate: 1 sec to 1 hr. Memory: 10...

Electrocorder EC-3A

Electrocorder EC-3A Type: Three Phase Current Logger. Measurements/Calculations: V, A, PF, kW, kWh, kVAR, kVA. Inputs: Current - Two models, 5–400 Amps & 30–3000 Amps. Sampling rate: Continuous, 16 samples per cycle 800Hz @...

USB-RS-232-L-10

USB-RS-232-L-10 USB to RS-232 converter lead.

Graphtec GL900 Case

Graphtec GL900 Case Graphtec GL900 Carry Case, plastic with a custom foam insert.
