Sensors

Sensors for your Data Logger

Every data logger with analogue or digital inputs will have at least one sensor connected to measure a specific parameter. Some sensors are built into the data logger such as single channel temperature and humidity loggers, while others will be connected externally.

Some of the most common parameters are Voltage, Current, Resistance, Frequency, Temperature, Humidity, Pressure, pH, Wind Speed and Wind Direction, Strain Gauges, Rainfall, Moisture and Leaf wetness, Vibration, Acceleration, RF, Light, Sound, Time, Logic on/off, Rotary Encoders, Serial data, SDI-12 & MODBUS data. And the list goes on!

General purpose data loggers can usually measure industry standard output signals like 4-20mA current or 0 to 10 volts DC and many of the parameters listed above will been measured with sensors that output one of these signals or similar.

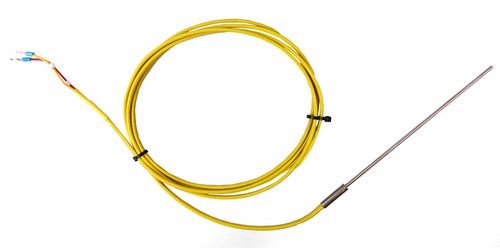

  • Type T Thermocouple Sensor - Teflon

    Type T Thermocouple Sensor - Teflon

    Type T Thermocouple Temperature Sensor - Teflon Temperature Sensor: Type T Thermocouple, Stainless steel sheath tip - ø4.7mm(3/16") x 50mm, Teflon 5.0 metre lead, maximum temperature 250°C. Non submersible.

    $55.00
    Add to Cart
  • Type K Thermocouple, 0602 0644.

    Type K Thermocouple with plug

    Type K Thermocouple Temperature Sensor - Fibre glass Temperature Sensor: Type K Thermocouple, Fibre glass 800mm lead, temperature range -50 to +400.

    $24.00
    Add to Cart
  • Vaisala HMP60 Humidity and Temperature Probe - with 3.0 metre lead.

    Vaisala HMP60

    Vaisala HMP60 Humidity and Temperature Probe - with HMP50Z30A 3.0 metre lead The Vaisala INTERCAP® Humidity and Temperature Probe HMP60 is a simple, durable and cost-effective humidity probe. It is suitable for volume applications, integration into...

    $321.00
    Add to Cart
  • Graphtec GS-TH Temperature and Humidity Sensor

    Graphtec GS-TH

    Graphtec GS-TH Temperature and Humidity Sensor. Specifications: Temperature, -20°C to +85°C. Humidity, 0 to 100% RH. GS-TH User's Manual and Technical Specifications Download Compatible with the following Graphtec data loggers. GL100-N...

    $145.00
    Add to Cart
  • Temperature Sensor, PT100 3 wire RTD. Temperature Sensor, PT100 stainless steel sensor tip.

    PT100 RTD Temp Sensor-50-Teflon

    PT100 RTD Temperature Sensor - Teflon Temperature Sensor: PT100 3 wire RTD, Class A ±0.15°C sensor, Stainless steel sheath tip - ø6mm x 50mm, 5.0 metre Teflon lead, max temperature 250°C.

    $75.00
    Add to Cart

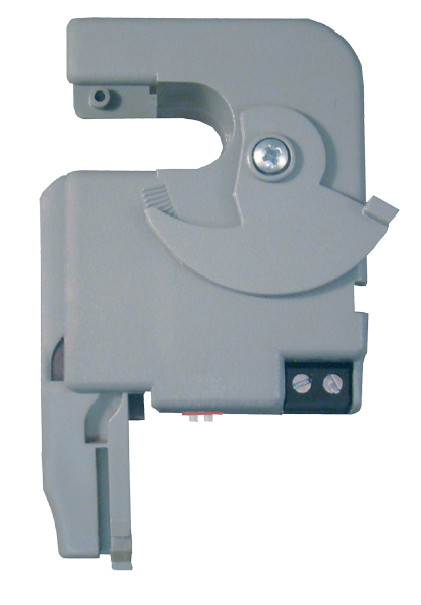

  • ACR Systems CT-153, Splitcore current transducer, 3┬áselectable ranges of 0-10A, 0-25A, 0-50A.

    ACR Systems CT-153

    ACR Systems CT-153 Split-core current transducer, three selectable ranges of 0-10A, 0-25A, 0-50A, 13mm cable opening, with 0-5 volts DC output. ACR Systems CT-153 technical specifications. Download

    $105.00
    Add to Cart
  • Graphtec GS-AC200A current sensor.

    Graphtec GS-AC200A

    Graphtec GS-AC200A current sensor. Compatible with the Graphtec GS-DPA-AC input module. Measurement range: Up to 200 amps AC.Measuring accuracy: ±2% of full sale ±1 digit.Type: Split clamp.Cable length: 20cm.Quantity: 1 item. GS-AC200A...

    $125.00
    Add to Cart
  • Graphtec GS-AC100A current sensor.

    Graphtec GS-AC100A

    Graphtec GS-AC100A current sensor. Compatible with the Graphtec GS-DPA-AC input module. Measurement range: Up to 100 amps AC.Measuring accuracy: ±2% of full sale ±1 digit.Type: Split clamp.Cable length: 20cm.Quantity: 1 item. GS-AC100A...

    $125.00
    Add to Cart
  • Graphtec GS-AC50A current sensor.

    Graphtec GS-AC50A

    Graphtec GS-AC50A current sensor. Compatible with the Graphtec GS-DPA-AC input module. Measurement range: Up to 50 amps AC.Measuring accuracy: ±2% of full sale ±1 digit.Type: Split clamp.Cable length: 20cm.Quantity: 1 item. GS-AC50A...

    $125.00
    Add to Cart
  • Graphtec GS-DPA-AC AC current module.

    Graphtec GS-DPA-AC

    Graphtec GS-DPA-AC AC current module. Measures current via optional AC current sensors. Inputs: Two sensors, they must be of the same type. Calculates instantaneous Power and total Energy. Measuring range: 50, 100, 200 amps depending of...

    $195.00
    Add to Cart
  • Graphtec GS-LXUV Illuminance and UV Sensor.

    Graphtec GS-LXUV

    Graphtec GS-LXUV Illuminance and Ultraviolet dual sensor. Measures Illuminance and Ultraviolet intensity. Illuminance range: 0 to 200k lux. UV intensity range: 0 to 30 mW/cm2. 1 ms response time. Spectral sensitivity: Illuminance: 400 to 750 nm...

    $245.00
    Add to Cart
  • Graphtec GS-CO2 Carbon Dioxide density sensor.

    Graphtec GS-CO2

    Graphtec GS-CO2 Carbon Dioxide Density Sensor. Measures Carbon Dioxide (CO2) Concentration. Measurement technology: NDIR (Non Dispersive Infra-red). Measuring range: 0 to 9999 ppm. Measuring accuracy: ±0.5% of reading + 30 ppm (0 to 5000 ppm...

    $425.00
    Add to Cart
  • Graphtec GS-103JT thermistor temperature probe. Graphtec GS-103AT thermistor temperature probe specifications.

    Graphtec GS-103JT

    Graphtec GS-103JT thermistor temperature sensor probe. Compatible with the Graphtec GS-4TSR input module. Measurement range: Ultra thin type, -40°C to +120°C.Cable length: 3 metres.Quantity: 1 item. GS-103JT Technical Specifications...

    $37.00
    Add to Cart
  • Graphtec GS-103AT thermistor temperature probe. Graphtec GS-103AT thermistor temperature probe specifications.

    Graphtec GS-103AT

    Graphtec GS-103AT thermistor temperature sensor probe. Compatible with the Graphtec GS-4TSR input module. Measurement range: Normal type, -40°C to +105°C.Cable length: 3 metres.Quantity: 1 item. GS-103AT Technical Specifications Download

    $37.00
    Add to Cart
  • Graphtec GS-3AT Acceleration and Temperature Sensor

    Graphtec GS-3AT

    Graphtec GS-3AT Acceleration and Temperature Sensor. Tri-axial Accelerometer. ±2G, ±5G, and ±10G measuring ranges. 5, 10, 20, 50 or 100mS sampling intervals. Peak, Average and RMS data functions. Pre-Trigger function...

    $280.00
    Add to Cart
  • Temperature Sensor, PT100 3 wire RTD. Temperature Sensor, PT100 stainless steel sensor tip.

    PT100 RTD Temp Sensor-100-Teflon

    PT100 RTD Temperature Sensor - Teflon Temperature Sensor: PT100 3 wire RTD, Class A ±0.15°C sensor, Stainless steel sheath tip - ø6mm x 100mm, 5.0 metre Teflon lead, max temperature 250°C.

    $75.00
    Add to Cart
  • Vaisala HMP110 Humidity and Temperature Probe - with 3.0 metre lead.

    Vaisala HMP110

    Vaisala HMP110 Humidity and Temperature Probe - with HMP50Z30A 3.0 metre lead The Vaisala HUMICAP® Humidity and Temperature Probe HMP110 is a trouble-free and cost-effective humidity transmitter with high accuracy and good stability. It is suitable...

    $454.00
    Add to Cart
  • Type K Thermocouple Sensor - Teflon

    Type K Thermocouple Sensor - Teflon

    Type K Thermocouple Temperature Sensor - Teflon Temperature Sensor: Type K Thermocouple, Stainless steel sheath tip - ø4.7mm(3/16") x 50mm, Teflon 5.0 metre lead, maximum temperature 250°C. Non submersible.

    $55.00
    Add to Cart
  • ACR Systems CT453 Clamp probe current transducer, 1.5 to 500A, 52mm cable opening.

    ACR Systems CT-453

    ACR Systems CT-453 Clamp probe current transducer, 5-500A, 30mm cable opening, with 0-5 volts DC output. ACR Systems CT-453 technical specifications. Download

    $245.00
    Add to Cart
  • ACR Systems CT353 Clamp probe current transducer, 5-500A, 30mm cable opening.

    ACR Systems CT-353

    ACR Systems CT-353 Clamp probe current transducer, 5-500A, 30mm cable opening, with 0-5 volts DC output. ACR Systems CT-353 technical specifications. Download

    $225.00
    Add to Cart

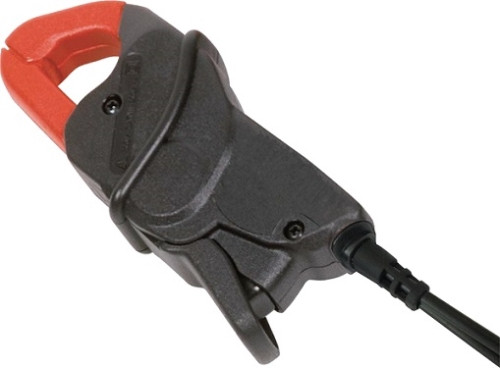

  • ACR Systems CT-253, clamp current transducer, 0 to 240A, 20mm cable opening.

    ACR Systems CT-253

    ACR Systems CT-253 Clamp current transducer, 5 to 240A, 20mm cable opening, with 0-5 volts DC output. ACR Systems CT-253 technical specifications. Download

    $205.00
    Add to Cart
