Graphtec

Graphtec data loggers

What makes the Graphtec data loggers so popular in Australia? To sum it up, we would have to say they are simple to use, not to mention well built and reliable. Graphtec Japan have taken the approach that data logging should be easy and with no requirement to install software on a computer to collect data. The large screen and the keypad on the data logger make this a breeze.

In the 10 + years Lontek has sold Graphtec units, we have set up hundreds of Graphtec data loggers for customers purely based on what they have mentioned during the sales discussions. So many times customers have called to thank us for our efforts. Being truthful, this set up only takes a minute and we do it as part of our inspection prior to shipping.

Graphtec blurs the line between data logger and data acquisition.

Most portable data loggers sample slower than once per second, and some of the smaller battery powered units same every minute or slower. This is mainly a balance between on board computing power and battery life, plus a few other engineering aspects that add cost too. The Graphtec GL series blur that line for portable data logging units. The GL240 and GL840 units can sample as fast as every ten milliseconds (10mS) for one analogue channel. The GL980 can sample at a blistering speed of every microsecond (1uS) simultaneously for all eight channels.

Graphtec is a world leader in data logging and recording instruments. The ultra portable GL series of data loggers offer excellent performance and superb value for money. With big full colour displays, Graphtec data loggers are great for portable applications.

  • Graphtec GL100-N data logger. Graphtec GL100 sensor inputs.

    Graphtec GL100-N

    The Graphtec GL100-N is a compact data logger with features usually seen in the larger more featured units. Graphtec have aimed the GL100 at the typical applications that other data loggers in it's class can not perform. The GL100-N can be battery(2 x...

    $330.00
    Add to Cart
  • Graphtec GL100-WL data logger. Graphtec GL100-WL sensor inputs.

    Graphtec GL100-WL WiFi

    The Graphtec GL100-WL is a compact Wireless data logger with features usually seen in the larger more featured units. Graphtec have aimed the GL100-WL at the typical applications that other data loggers in it's class can not perform. The GL100-WL can be...

    $380.00
    Add to Cart
  • Graphtec GL2000 data logger. Graphtec GL2000 display chart.

    Graphtec GL2000

    Type: High speed 600 volt DC or RMS data logger with 7" colour display. *See data sheet for full specifications. Analogue channels: 4 Digital channels: 4 Analogue Input Type: Voltage, 4-20mA, Temperature. Speed: 1µs to 1min. All four channels...

    $3,875.00
    Add to Cart
  • Graphtec GL240 data logger-side. Graphtec GL240 side.

    Graphtec GL240

    The Graphtec GL240 data logger is great for portable data logging applications, it can be quickly set up to record data in only a few minutes. What can the GL240 measure and record? The GL240 can be used for a variety of data logging jobs. Customers...

    $1,450.00
    Add to Cart
  • Graphtec GL840 data logger - side. Graphtec GL840 data logger.

    Graphtec GL840-M

    The Graphtec GL840 is a multi-channel data logger that can be used for many data logging applications. There are two versions of this data logger manufactured by Graphtec. The GL840-M which is used for general data logging work, and the GL840-WV which...

    $2,550.00
    Add to Cart
  • Graphtec GL840-WV data logger. Graphtec GL840 data logger features.

    Graphtec GL840-WV

      Why buy the GL840-WV? The Graphtec GL840-WV data logger has been designed by the Graphtec Engineers for applications that require better temperature accuracy when measuring thermocouples and a higher common mode input voltage. The higher common...

    $2,975.00
    Add to Cart

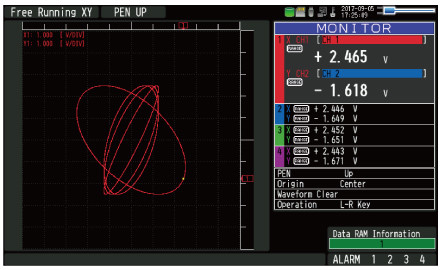

  • Graphtec GL980 data logger. Graphtec GL980 APS software - XY mode.

    Graphtec GL980

    Type: High speed general purpose data logger with 7" colour display. Analogue channels: 8 Digital channels: 4 Analogue Input Type: Voltage, 4-20mA, Temperature. Speed: 1µs to 1min. All eight channels simultaneously. Resolution: 16bit. Data...

    $4,295.00
    Add to Cart

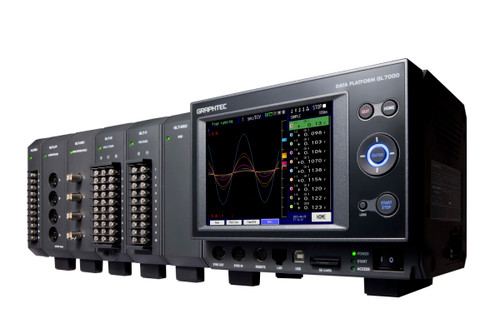

  • Graphtec GL7000 complete system Graphtec GL7000 complete system

    Graphtec GL7000

    Main GL7000 module without display, options here. Type: High speed general purpose data recorder. Channels: Up to 112 channels via optional plug in modules. Inputs: Voltage, Current, Strain, Charge, Temperature, Humidity and Logic I/O. Speed: Max...

    $2,075.00
    Add to Cart
  • Graphtec B-568 WiFi module. Graphtec B-568 WiFi module connector.

    Graphtec B-568 WiFi module

    Graphtec B-568 WiFi module. Connect your Graphtec GL240, GL840-M or GL840-WV to the local network via WiFi. The B-568 WiFi module also allows you to connect up to five GL100-WL units wirelessly to the GL840-M and GL840-WV units and on GL100-WL to the...

    $265.00
    Add to Cart

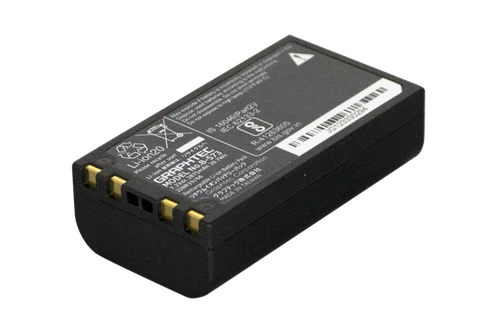

  • Graphtec B-569 Battery-top Graphtec B-569 Battery-top

    Graphtec B-569 Battery

    Graphtec Rechargeable Lithium-ion battery pack, 7.2 V, 2900mAh, 20.9Wh. The new Graphtec battery pack B-569 can be used with the Graphtec GL240, GL840, GL980 & GL2000 data loggers. The B-569 can also be used in the now discontinued GL900, GL820,...

    $195.00
    Add to Cart
  • Graphtec GS-3AT Acceleration and Temperature Sensor

    Graphtec GS-3AT

    Graphtec GS-3AT Acceleration and Temperature Sensor. Tri-axial Accelerometer. ±2G, ±5G, and ±10G measuring ranges. 5, 10, 20, 50 or 100mS sampling intervals. Peak, Average and RMS data functions. Pre-Trigger function...

    $280.00
    Add to Cart
  • Graphtec GS-4TSR Thermistor Temperature input module.

    Graphtec GS-4TSR

    Graphtec GS-4TSR thermistor input module. Four thermistor input channels. Four additional Pulse or logic inputs. Optional Thermistor temperature probes. GS-103AT - Normal type Thermistor sensor, -40°C to +105°C. GS-103JT - Ultra thin...

    $195.00
    Add to Cart
  • Graphtec GS-4VT Voltage and Temperature input module.

    Graphtec GS-4VT

    Graphtec GS-4VT Voltage and Temperature module. Four voltage channels. 0-50 volts DC. Type K & T thermocouples. Four additional Pulse or logic inputs. GS-4VT User's Manual and Technical Specifications Download Works with the following...

    $385.00
    Add to Cart
  • Graphtec GS-CO2 Carbon Dioxide density sensor.

    Graphtec GS-CO2

    Graphtec GS-CO2 Carbon Dioxide Density Sensor. Measures Carbon Dioxide (CO2) Concentration. Measurement technology: NDIR (Non Dispersive Infra-red). Measuring range: 0 to 9999 ppm. Measuring accuracy: ±0.5% of reading + 30 ppm (0 to 5000 ppm...

    $425.00
    Add to Cart
  • Graphtec GS-DPA-AC AC current module.

    Graphtec GS-DPA-AC

    Graphtec GS-DPA-AC AC current module. Measures current via optional AC current sensors. Inputs: Two sensors, they must be of the same type. Calculates instantaneous Power and total Energy. Measuring range: 50, 100, 200 amps depending of...

    $195.00
    Add to Cart
  • Graphtec GS-LXUV Illuminance and UV Sensor.

    Graphtec GS-LXUV

    Graphtec GS-LXUV Illuminance and Ultraviolet dual sensor. Measures Illuminance and Ultraviolet intensity. Illuminance range: 0 to 200k lux. UV intensity range: 0 to 30 mW/cm2. 1 ms response time. Spectral sensitivity: Illuminance: 400 to 750 nm...

    $245.00
    Add to Cart
  • Graphtec GS-TH Temperature and Humidity Sensor

    Graphtec GS-TH

    Graphtec GS-TH Temperature and Humidity Sensor. Specifications: Temperature, -20°C to +85°C. Humidity, 0 to 100% RH. GS-TH User's Manual and Technical Specifications Download Compatible with the following Graphtec data loggers. GL100-N...

    $145.00
    Add to Cart
  • DC Power Cable

    DC Power Cable

    DC Power Cable for Graphtec units (B-514 alternative) DC Power Cable for your Graphtec data logger. A local alternative to the Graphtec B-514 cable. Plug: 2.5mm x 5.5mm. Cable: ~1.5 metres. Use this cable to directly power your Graphtec data logger...

    $20.00
    Add to Cart
  • Graphtec B-564 20 channel input terminal.

    Graphtec B-564

    Graphtec B-564 Up to 200 isolated channels with multi-function inputs. The GL840 is fitted with 20 channels as standard. It can be expanded from 20 to 200 channels with the optional B-567 cables, B-566 expansion base plus either the B-564 or B-565...

    $660.00
    Add to Cart

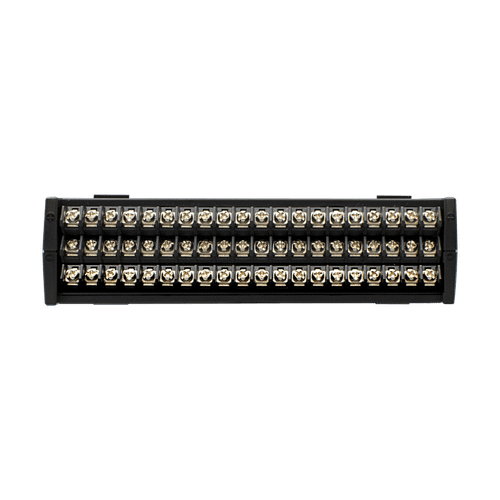

  • Graphtec B-565 input terminal.

    Graphtec B-565

    Graphtec B-565 Up to 200 isolated channels with multi-function inputs. The GL840 is fitted with 20 channels as standard. It can be expanded from 20 to 200 channels with the optional B-567 cables, B-566 expansion base plus either the B-564 or B-565...

    $985.00
    Add to Cart
  • Graphtec B-566 terminal base plate.

    Graphtec B-566

    Graphtec B-566 Terminal base plate. Up to 200 isolated channels with multi-function inputs. The GL840 is fitted with 20 channels as standard. It can be expanded from 20 to 200 channels with the optional B-567 cables, B-566 expansion base plus either...

    $355.00
    Add to Cart
  • Graphtec B-567-05 extension cable.

    Graphtec B-567-05

    Graphtec B-567-05 extension cable This cable is 0.5 metres long and it connects the Graphtec GL840-M or GL840-WV with the first B-566 terminal base. The GL840 is fitted with 20 channels as standard. It can be expanded from 20 to 200 channels with the...

    $150.00
    Add to Cart
  • Graphtec B-567-20 extension cable.

    Graphtec B-567-20

    Graphtec B-567-20 extension cable This cable is 2 metres long and it connects the Graphtec GL840-M or GL840-WV with the first B-566 terminal base. The GL840 is fitted with 20 channels as standard. It can be expanded from 20 to 200 channels with the...

    $245.00
    Add to Cart
  • Graphtec GL240 carry case

    Graphtec GL240 Case

    Graphtec GL240 Case Graphtec GL240 Carry Case, plastic with a custom foam insert. Our cases are sourced from a local supplier. We then have a custom foam insert made to suit each model of Graphtec data logger.

    $125.00
  • Graphtec GL7-DCB load cell and stain gauge module

    Graphtec GL7-DCB

    Channels per module: 4. Sensor terminals/connector: DB-9 connector. Measurement types: Load Cell, Strain Gauges, TEDs Sensor, Acceleration sensor, Resistance, Thermistor, Potentiometer, DC Voltage. Max simultaneous sampling rate: 100kS/s(10us)...

    $2,875.00
    Add to Cart
  • Graphtec GL7-DISP display. Graphtec GL7-DISP remote display.

    Graphtec GL7-DISP

    Touch screen display The optional GL7-DISP touch screen display which utilises a bright clear 5.7 inch colour LCD monitor can easily be fitted directly to the main control unit or used remotely via a standard LAN cable. The LCD monitor makes it easy to...

    $1,325.00
    Add to Cart
  • Graphtec GL7-HSV high speed voltage module.

    Graphtec GL7-HSV

    Channels per module: 4. Sensor terminals/connector: BNC. Max input voltage: 100 volts P-P. Measurement ranges: 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V plus 1-5 V. Max simultaneous sampling rate: 1MS/s(1us). Data storage: 2,000,000 data points...

    $2,100.00
    Add to Cart
  • Graphtec GL7-M temperature/voltage module.

    Graphtec GL7-M

    Channels per module: 10. Sensor terminals/connector: M3 screws. Measurement types: Voltage, Thermocouple, RTD. Max sampling rate: 100S/s(10ms). Data storage: 2,000,000 data points. More information GL7000 AMP data sheetGL7-M manual

    $1,450.00
    Add to Cart
  • Graphtec GL7-V voltage module.

    Graphtec GL7-V

    Channels per module: 10. Sensor terminals/connector: M3 screws. Max input voltage: 100 volts P-P. Measurement ranges: 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V plus 1-5 V. Max simultaneous sampling rate: 1kS/s(1ms). Data storage: 2,000,000 data...

    $2,100.00
    Add to Cart
  • Graphtec GL820 carry case

    Graphtec GL840 Case

    Graphtec GL840-M Case Graphtec GL840-M Carry Case, plastic with a custom foam insert. Our cases are sourced locally and we then have custom foam inserts made to suit each Graphtec data logger. The GL840 case suits both the Graphtec GL840-M and GL840-WV.

    $165.00
  • Graphtec GL980 carry case.

    Graphtec GL980 Case

    Graphtec GL980 Case Graphtec GL980 Carry Case, plastic with a custom foam insert. Our cases are sourced from a local supplier. We then have custom foam inserts made to suit each Graphtec data logger.

    $175.00
    Add to Cart
  • Graphtec GS-103AT thermistor temperature probe. Graphtec GS-103AT thermistor temperature probe specifications.

    Graphtec GS-103AT

    Graphtec GS-103AT thermistor temperature sensor probe. Compatible with the Graphtec GS-4TSR input module. Measurement range: Normal type, -40°C to +105°C.Cable length: 3 metres.Quantity: 1 item. GS-103AT Technical Specifications Download

    $37.00
    Add to Cart
  • Graphtec GS-103JT thermistor temperature probe. Graphtec GS-103AT thermistor temperature probe specifications.

    Graphtec GS-103JT

    Graphtec GS-103JT thermistor temperature sensor probe. Compatible with the Graphtec GS-4TSR input module. Measurement range: Ultra thin type, -40°C to +120°C.Cable length: 3 metres.Quantity: 1 item. GS-103JT Technical Specifications...

    $37.00
    Add to Cart
  • Graphtec GS-AC100A current sensor.

    Graphtec GS-AC100A

    Graphtec GS-AC100A current sensor. Compatible with the Graphtec GS-DPA-AC input module. Measurement range: Up to 100 amps AC.Measuring accuracy: ±2% of full sale ±1 digit.Type: Split clamp.Cable length: 20cm.Quantity: 1 item. GS-AC100A...

    $125.00
    Add to Cart
  • Graphtec GS-AC200A current sensor.

    Graphtec GS-AC200A

    Graphtec GS-AC200A current sensor. Compatible with the Graphtec GS-DPA-AC input module. Measurement range: Up to 200 amps AC.Measuring accuracy: ±2% of full sale ±1 digit.Type: Split clamp.Cable length: 20cm.Quantity: 1 item. GS-AC200A...

    $125.00
    Add to Cart
  • Graphtec GS-AC50A current sensor.

    Graphtec GS-AC50A

    Graphtec GS-AC50A current sensor. Compatible with the Graphtec GS-DPA-AC input module. Measurement range: Up to 50 amps AC.Measuring accuracy: ±2% of full sale ±1 digit.Type: Split clamp.Cable length: 20cm.Quantity: 1 item. GS-AC50A...

    $125.00
    Add to Cart
  • Graphtec GS-DPA dual port adapter. Graphtec GS-DPA dual port adapter with sensors.

    Graphtec GS-DPA

    Graphtec GS-DPA dual port adapter. Only one GS-DPA can be used. Only compatible with the following sensors: GS-TH - Temperature and humidity sensor. GS-LXUV - Illumination / ultraviolet sensor. GS-CO2 - CO2 sensor. GS-DPA User's Manual and...

    $125.00
    Add to Cart
  • Graphtec GS-EXC Extension cable for Graphtec GS series input modules, 1.5 metres. Only one cable can be used per unit.

    Graphtec GS-EXC

    Graphtec GS-EXC Extension cable for Graphtec GS series input modules, 1.5 metres. Only one cable can be used per unit.

    $90.00
    Add to Cart

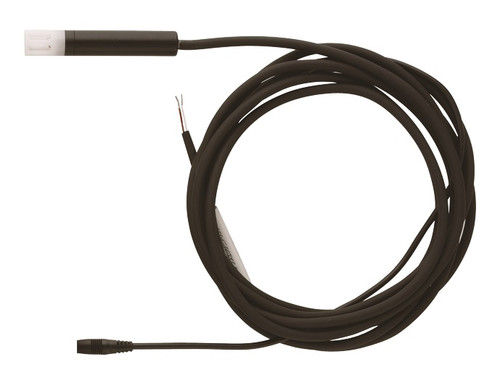

  • Graphtec B-530 humidity sensor.

    Graphtec B-530

    Graphtec B-530 Graphtec B-530 humidity sensor, 3 metre lead, with power plug that enables the sensor to be powered by the data logger.

    $510.00
    Add to Cart
  • Graphtec RIC-115 cable

    Graphtec RIC-115

    Graphtec RIC-115 RIC-115 input cable, 1.5metres, two pin Banana plug to bare cable end. Suits: Graphtec WR300 or WR310 voltage module inputs.Graphtec GL1000 or GL1100 voltage module inputs.Graphtec WR1000 voltage module inputs.Graphtec WR3320...

    $15.00
    Add to Cart
  • Graphtec RIC-143 Input Cable.

    Graphtec RIC-143

    Graphtec RIC-143 RIC-143 input cable, BNC to Banana socket, 1.5metres, Isolated. Use with the Graphtec RIC-146 hook connector.

    $85.00
    Add to Cart
  • Graphtec RIC-146 Hook style clip.

    Graphtec RIC-146

    Graphtec RIC-146 RIC-146 Hook style clip. Use with the Graphtec RIC-143 or similar banana socket.

    $65.00
    Add to Cart
