Product Description
Graphtec B-566 Terminal base plate.
The B-566 is used in conjunction with input terminals to expand the number of input channels for GL860 data loggers.

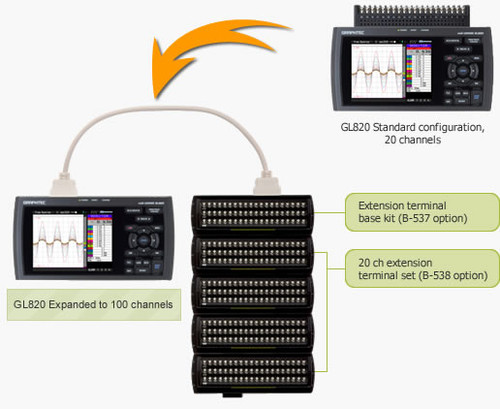

A Graphtec GL860 data logger can be fitted with 20-Channels or 30-Channels Input Terminals as a single standard system, or it can be expanded up to 200 channels with the optional B-567-xx cable, B-566 expansion base plus either the B-563, B-563SL, B-563SL-30 or B-565 expansion modules. A total of 500 channels can be monitored via the Graphtec APS software and up to ten GL860 units can be networked as a complete data logging solution.
| 20 Channels |
40 Channels |
100 Channels |
200 Channels |
|
| Graphtec GL860 Data Logger unit | 1 | 1 | 1 | 1 |
| Extension Cable B-567-05 or B-567-20 | -- | 1 | 1 | 1 |
| Channel Expansion base plate B-566 | -- | 2 | 5 | 10 |
| 20Ch Expansion terminal B-563, B-563SL, B-563SL-30 or B-565 | 1 | 2 | 5 | 10 |
Example
If you required a 40 channel system. Please order the following items.
1 x GL860 data logging unit.
1 x Extension cable B-567-05 or B-567-20.
2 x B-566 channel expansion base plate.
2 x Input Terminals, B-563, B-563SL, B-563SL-30 or B-565.
The two selected terminals are fitted to the B-566 bases, both terminal base sets are now connected together using the supplied fixing plates and screws, the B-567-xx cable connects to terminal base sets to the GL860.
