Graphtec GL860 + B-563

Product Description

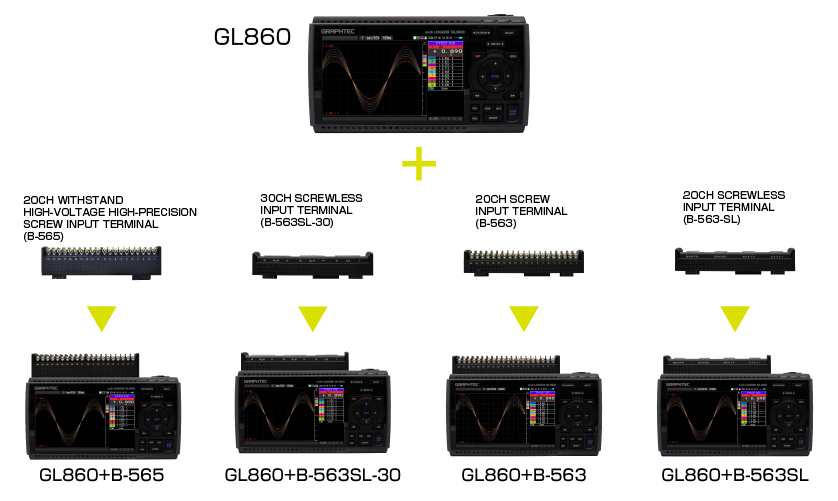

Graphtec GL860 + B-563 input terminal block.

The Graphtec GL860 is a multi-channel data logger that can be used for many data logging applications. The GL860 + B-563 series of terminal blocks can be used for general data logging work, while the GL860 + B-565 terminal block has improved temperature accuracy and it can also handle higher DC voltages.

What can the GL860 measure and record?

While the GL860 can be used on many different types of data logging and monitoring projects. We commonly see our customers using the GL860 data logger to record some of the following parameters for a fairly wide and varied list of applications.

• Calibration Laboratories - Temperature recording for general calibration and verification work.
• Commercial Office Air Quality Studies - Temperature, Humidity Light(Lux), Noise, and Comfort.
• Autoclave - General calibration and verification of temperature and pressure plus spacial profiling.
• Motor vehicle and Trucks - Temperature and pressures for engine oil, exhaust systems, gearbox, differentials and axles.
• Battery condition monitoring and measurement.
• Furnace and Ovens - Temperature monitoring and profiling.
• Yacht and boat hull building - Temperature measurement of e-glass and composite.
• Diesel engine temperatures and pressures plus engine RPM speed.
• Consumer appliance testing - Temperature testing of thermal safety fuses and general R&D testing.
• Rail - Rolling stock, braking systems air pressure, bearing temperatures.
• Air conditioning and HVAC systems - Temperature, humidity and power consumption for energy efficiencies.
• Pharmaceutical - Temperature monitoring and data logging for manufacturing and product storage.

Looking at the list above, temperature is the stand out parameter. We mostly see customers using thermocouples to measure temperature because they are generally well priced, easy to use and their accuracy can be typically better than ±1°C if required. If better accuracy is needed, the GL860 + B-565 can also support three wire RTD(PT100) sensors as well. On occasions with see customers using temperatures transmitters with 4-20mA outputs. The GL860 can also measure 4-20mA signals with the use of an standard external 250 ohm resistor, plus the GL860 also has a dedicated input range for easy data scaling back to Deg C.

After the temperature, pressure, humidity and energy would be the next most common. Although the list flattens out sharply.

When would you use a GL860?

The GL860 is a great data logger for any project, small or large.  It does start to stand out for those projects where you need to record ten or more sensors, but no more than two hundred sensors. This could be a mix of various sensor types, or they could all be the same type of sensors.

Why would you use a GL860?

In one word, Simplicity. The Graphtec GL860 is quick and easy to set up and use. You can literally take the GL860 out of the box, connect a couple of thermocouples to the terminals, use the on-board keypad to set the required channels and sampling rate, then press the Start button. Recorded data can be quickly save to an SD memory card in CSV format and then be viewed directly in Microsoft Excel or any other software program that can import CSV data. It's that simple and you haven't even installed the free Graphtec GL software!

Graphtec GL860

• Type: General purpose data logger.
• Channels: Starts at 20 and is expandable up to 200 channels.
• Inputs: Voltage, Current*, Temperature, Humidity and Logic I/O.
• Speed: 5ms to 1Hr.
• Resolution: 16bit.
• Data Storage: Internal 8GB flash memory.
• PC Connection: Ethernet & USB 2.0 + Wi-Fi with optional B-568 module.
• Data transfer: SD memory card, direct to PC or via optional WiFi module.
• Power: External 8.5~24 volts DC or Optional B-573 battery.
• Software: Software included and freely available via download.

* With an extenal 250 ohms resistor.

GL860 Technical Specifications Download

GL860 Product Overview Download

GL860 Quick Start Guide Download

GL860 Users Manual Download

GL860 Application Software Download

Optional Extras

The following items are optional extras and can be purchased separately if required.

• Graphtec genuine B-573 battery.
• Graphtec B-568 WiFi module.
• Graphtec B-513 Logic Input/Output cable.
• Graphtec B-530 Humidity probe.
• GL860 carry case.
• See expansion modules below.

Channel Input types

*Accuracy rating for K-type thermocouple at 100°C includes reference junction compensation. Accuracy varies by the temperature levels and thermocouple types. See this post about calibrating your Graphtec data logger.

Up to 200 isolated channels with multifunction input

The GL860 can be fitted with 20 or 30 channels as standard. It can be expanded up to 200 channels with the optional B-567 cables, B-566 expansion base plus either the B-563 or B-565 expansion module. A total of 500 channels can be monitored via the Graphtec APS software and up to ten GL860 units can be networked as a complete data logging solution.

Example
If you required a 40 channel system. Please order the following items.

1 x GL860 data logging unit.
1 x Extension cable B-567-05 or B-567-20.
2 x B-566 channel expansion base plate.
2 x Input Terminals, B-563, B-563SL, B-563SL-30 or B-565.

The two selected terminals are fitted to the B-566 bases, both terminal base sets are now connected together using the supplied fixing plates and screws, the B-567-05 cable connects to terminal base sets to the GL860.

Maximum sampling interval of up to 5ms

Voltage measurements can be sampled as fast as 5mS for one channel. Thermocouple measurements can be sampled at a maximum rate of 100mS for twenty channels.

Supports SD memory card for reliable long term data storage or transfer

The Graphtec GL860 data logger supports one SD memory card slot for data storage or transfer. The SDHC type SD memory card is supported up to 32GB.

Binary or ASCII data file types

The captured data can be stored in GBD(Graphtec binary data) or CSV file format. The binary data format is more robust and a lot more compacted than the CSV format. The CSV format has the direct advantage in that it can be opened directly in MS Excel or other data analysis software programs.

*Figures are approximate. Maximum file size of captured data is 2GB in GBD or CSV file format.

Vivid 17.8cm(7") TFT colour LCD...

The bright, easy-to-read 17.8cm(7") TFT colour LCD monitor (VGA: 800 x 480 dots) makes it even easier to review measurement parameter settings, measured waveforms, and digital values.

All the GL860's functions can be accessed through the navigation cluster and LCD screen. Single touch buttons for such tasks as display mode, set up and logging start/stop negate the need for complicated menu trees.

Free Bundled PC software

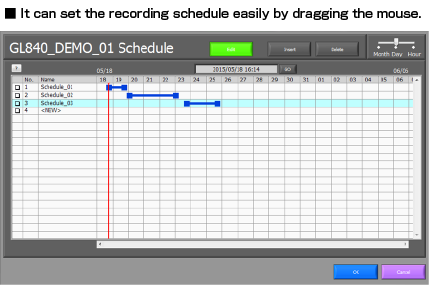

The GL860 is bundled with PC application software that enables data logging directly to a PC. In addition to waveform monitoring, this software provides other useful functions such as direct writing of data to an Excel file and report creation. The software also provides a Help display function for enhanced usability.

Diverse measurement screens

Various display screens can be selected: Y-T, X-Y, Digital, Meter, and Report.

Multi-channel measurement

One GL860 data logger enables measurement on up to 200 channels at the device itself, and up to 500 channels when PC measurement has been specified. In addition, since the channels can be assigned to four display groups, they can be arranged according to the input type.

Convenient functions

A function that displays the logic alarm status during measurement and a password protection function are built in. Other convenient functions are the display of a CSV file batch conversion screen after captured data has been replayed and various data search functions.

Software Features

• Configuration and channel set up via USB or Ethernet Real time data storage to hard disk.
• Stored data import from GL860.
• E-mail notification of errors and alarms.
• Available measurement modes: Y-T and X-Y.
• Separate screens are available for each of the settings.
• Direct Excel transfer can be enabled as a report function.

Remote monitoring via Ethernet; Web server/FTP functions

Firefox, Vavaldi or Edge browser can be used for settings, control, data monitoring and data acquisition.

The Web server function enables the acquisition of setting control data.

The FTP function enables the acquisition of data stored to the GL860.

GL860 Main Features

• With optional 20 or 30 input terminals, expandable to 200 channels.
• Isolated multifunction channels for Voltage, Temperature or Humidity.
• Inputs: Voltage (20mv to 100V), Thermocouples (K,E,J,T,N,R,S,T,B,W) and 4-20mA signals via external shunt resistor.
• Optional Graphtec B-530 Humidity sensor is available.
• Four pulse inputs and one trigger input. Optional Graphtec B-513 cable required.
• 16-bit ADC resolution.
• 17.8cm (7") colour LCD display (VGA: 800 x 480 dots).
• Waveform and text display modes.
• Easy-to-use keypad menu system.
• Single open-collector alarm output.
• Range of trigger functions.
• Real-time statistical calculation.
• USB 2.0 interface for PC connection.
• Ethernet (TCP/IP) for PC connection and WEB/FTP server.
• Optional Wi-Fi with the B-568 module.
• Optional Graphtec battery B-573 for portable operation.
• Scan speed - Maximum.
  • 5 milli Seconds for 1 channel.
  • 10 milli Seconds for 2 channels.
  • 20 milli Seconds for 4 channels.
  • 50 milli Seconds for 1-10 channels.
  • 100 milli Seconds for 11-20 channels.
  • 250 milli Seconds for 21-50 channels.
  • 500 milli Seconds for 51-100 channels.

The GL860 is supplied with the following items as standard:

• GL860 Quick Start Guide. Printed copy supplied.
• GL28-APS and GL-Connection Software. Included on the built-in 8GB SD in the GL860.
• Mains Power Supply - 24 Volts DC. With local Australian mains cable.
• USB Cable for PC connection.
