- Type: Three Phase Voltage & Current Logger + Power Factor on a single phase.
- Measurements: V, A, PF.
- Calculations: kW, kWh, kVAR, kVA.

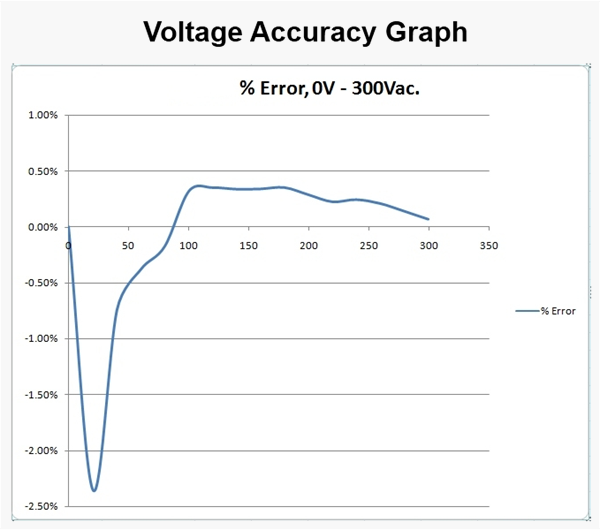

- Voltage - 0V to 600Vrms (Ph – Ph) or 0V to 350Vrms (Ph – N).

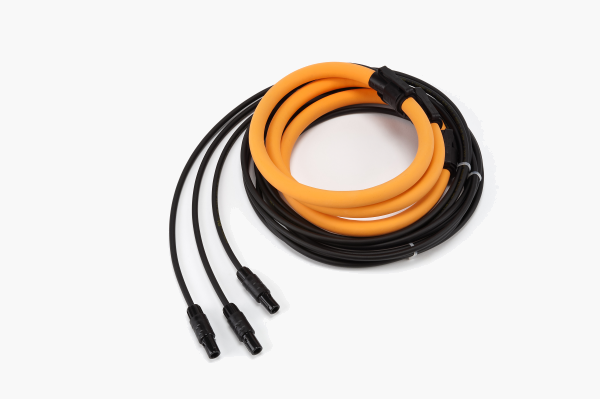

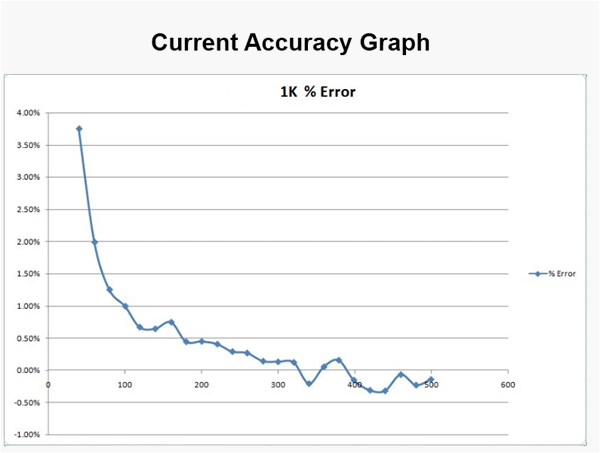

- Current - Dual range: 5A–400A & 30A–3000A.
- Sampling rate: Continuous, 16 samples per cycle 800Hz @ 50Hz.
- Logging rate: 2 sec to 1 hr.
- Memory: 10 mins gives 50 days logging, 1 hr gives up to 300 days logging.
- PC Connection: USB.
- Data transfer: Direct to PC via USB cable.
- Power: Line powered from mains (can be battery powered for 1 week).

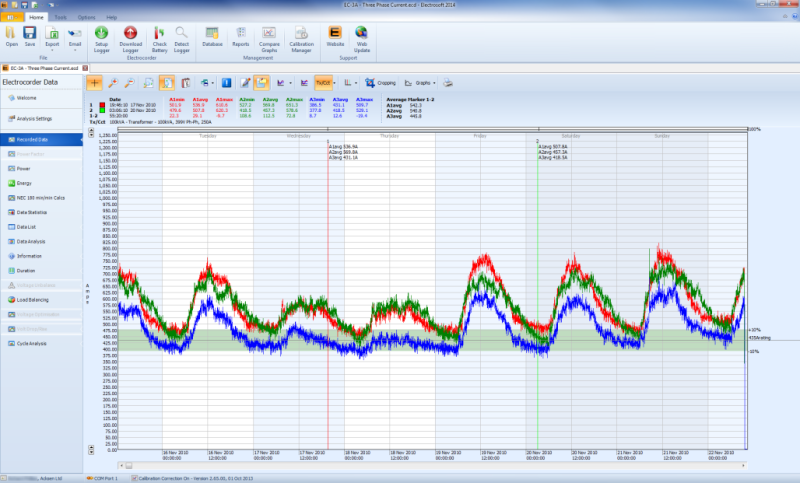

- Software: Software included.
EC-7VAR-RS Technical Specifications Download
