Product Description
Discontinued model.

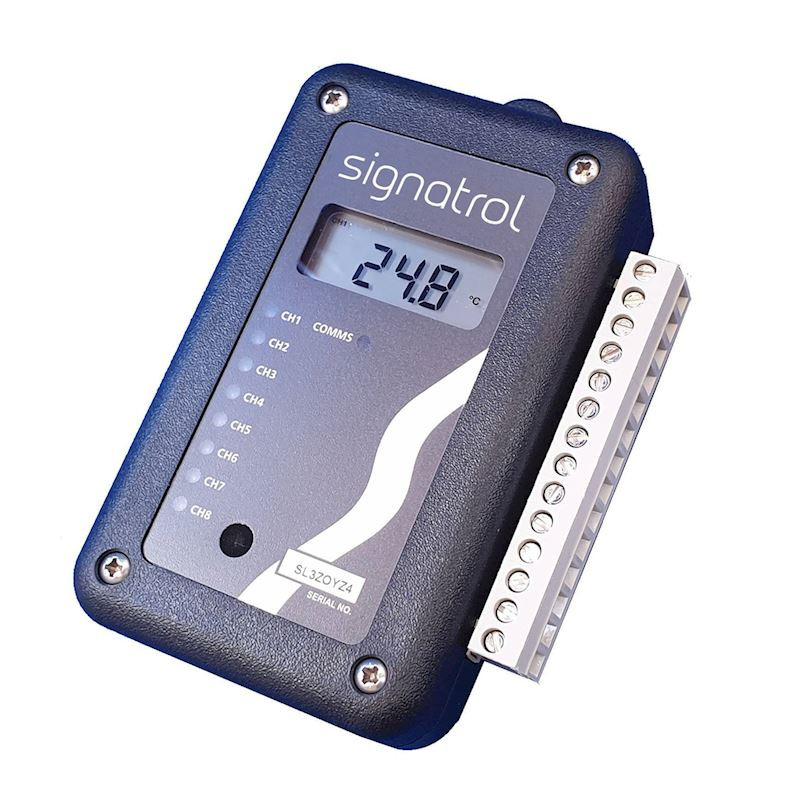

The Signatrol SL7000 data loggers have a very flexible combination of inputs from a single temperature up to 4 universal inputs each of which can be individually configured to accept any combination of the following input types.
Features
- Universal Inputs
- 16-bit resolution
- LCD display option
- User-replaceable battery
- Typical 3 year battery life
- Digital input
Specifications
Inputs
- Pt100: 2 or 3 wire °C or °F (BS EN 60751/JIS1604)
- Ni100, Ni120: 2 or 3 wire °C or °F
- Cu10: 2 or 3 wire °C or °F
- Thermocouples J, K, T, R, S, B, N °C or °F
- Thermistor (various types) °C or °F
- (0-20 mA) scaled in engineering units
- +/- 100mV dc scaled in engineering units
- (0-1)V DC scaled in engineering units
- (0-10)V DC scaled in engineering units
- Slidewire scaled in engineering units (100ohm to 10kohm)
Signatrol SL7000 series technical specifications. Download
Signatrol SL7000 series manual (4.8 MB) Download
Signatrol SL7000 series Quick Start Guide Download
