Dent ELITEpro XC internal Wi-Fi

Product Description

Discontinued Model - Call for Wi-Fi alternatives

Included Accessories

• ELITEpro XC - International version with internal Wi-FI
• FUSED croc clips - set of four
• Silicon leads - set of four
• Unterminated leads - set of four
• Elog software on USB or via download
• USB cable
• Soft carry case
• Australian mains plug pack
• Manuals on USB or via download
• Dent Instruments Screwdriver

Required Current Transformers

The ELITEpro XC is supplied with basically everything you need to get started. All you need to do is select the size of the current transformer (CT) best suited for your typical monitoring application. Several main factors need to be considered when selecting the best suit CT.

1. Maximum and minimum load current in Amps.
2. The physical size of the cable the CT needs to fit around. Some cabling installations may have multiple grouped cables for load or voltage drop reasons.
3. The physical space in the switchboard or electrical cabinet.

Three of the following CTs are also required for three phase applications. Or for single phase, you could monitor three or four circuits and potentially they could be of various sizes.

CT-HSC-020U - 20 Amp Mini current transformer.
CT-HSC-050U - 50 Amp Mini current transformer.

CT-HMC-0100-U - 100 Amp Midi current transformer.
CT-HMC-0200-U - 200 Amp Midi current transformer.
CT-HLC-0400-U - 400 Amp Midi current transformer.

CT-CON-0150EZ-U - 150 Amp Clamp current transformer.

CTRCFX16L1800A3MSTV1 - 5-1800 Amp 400mm(16") RoCoil Flexible current transformer.

CTRCFX24L4000A3MSTV1 - 5-4000 Amp 600mm(24") RoCoil Flexible current transformer.

CTRCFX36L4000A3MSTV1 - 5-4000 Amp 900mm(36") RoCoil Flexible current transformer.

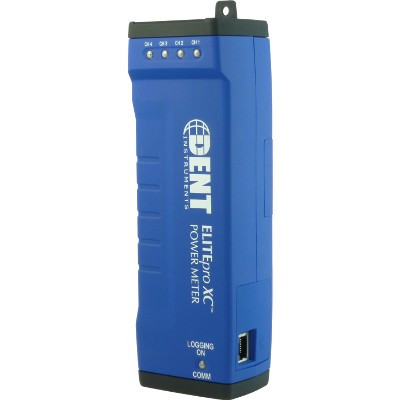

DENT Instruments ELITEpro XC - internal Wi-Fi

The ELITEpro XC succeeds the ELITEpro SP and is a portable power meter designed for electrical measurement and verification projects or temporary load studies.

The ELITEpro XC now includes four analogue input channels which can be configured for voltage (0-10V) or current (0 or 4-20mA) inputs and can be used in any combination. The analogue inputs can be helpful when used in conjunction with power measurements to correlate the consumption of electricity with environmental conditions such as Temperature, Air Pressures, Flow rates, or even simple load currents. One major upgrade is that the internal memory capacity of the ELITEpro XC has been increased to 16 MB internal non-volatile memory, twice the capacity of the previous-generation product.

Can be used on single or 3-phase systems using 80-600V phase-to-phase (AC or DC) services when line powered or 0-600V (AC or DC) when externally powered. Measures up to four channels of energy metrics with currents ranging from 0-6,000 amps. With better than 1% accuracy (<0.5% typical).

Typical Applications:

• Load Profiling for forecasting and trending energy use.
• Energy Audits and Energy Surveys to determine demand profiles, manage costs, and monitor consumption.
• Verification Studies to validate energy savings measures.
• True RMS Current Reading for monitoring up to 4 branch circuits.

Dent Instruments ELITEpro XC technical specifications. Download
