Product Description

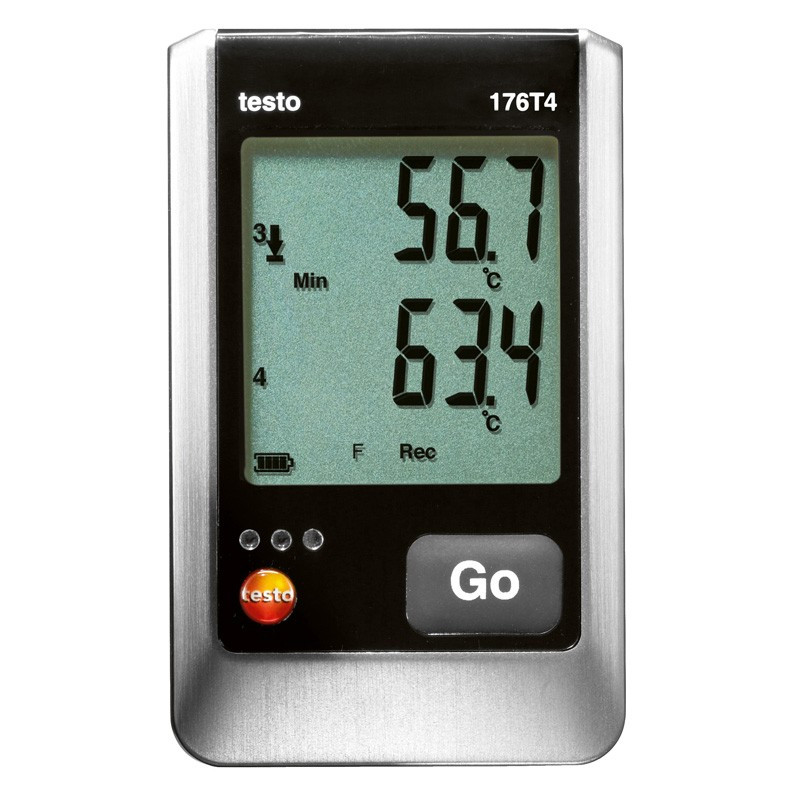

The Testo 176 T4 four channel temperature data logger can be used for a range of applications that requires up to four external temperature probes. Using standard Type T or Type thermocouples, you can select from a range of off the shelf temperature probes or have a custom probes made to your specifications.
The testo 176 T4 data logger includes:
Testo 176 T4 data logger
Wall bracket with lock, USB cable, and battery
FREE Testo ComSoft software via download
Calibration protocol
General technical data:
Channels: 4 x External Type T or Type K thermocouples

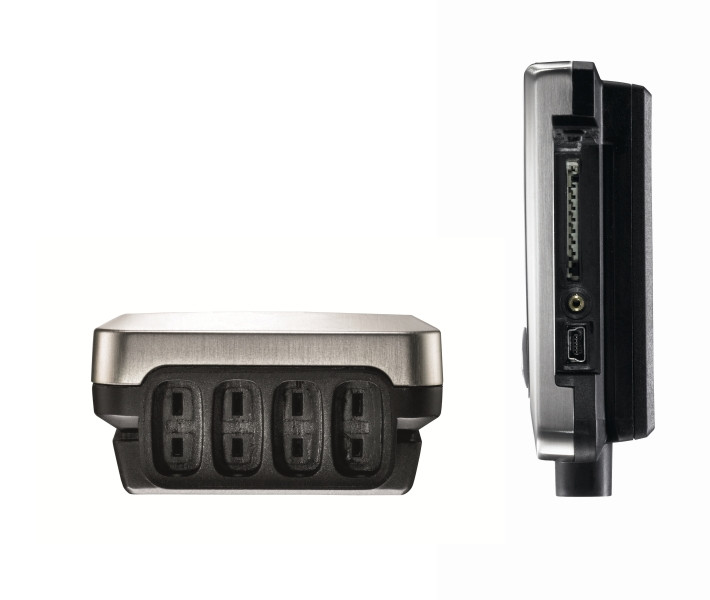

Standard mini thermocouple sockets for easy probe connection
Sensor types
| Type T (Cu-CuNi) | Type K (NiCr-Ni) | Type J (Fe-CuNi) | |
| Measuring range | -200 to +400 °C | -195 to +1000 °C | -100 to +750 °C |
| Accuracy ±1 digit |
±1 % of mv (-200 to -100.1 °C) ±0.3 °C (-100 to +70 °C) ±0.5 % of mv (+70.1 to +1000 °C) |
±1 % of mv (-200 to -100.1 °C) ±0.3 °C (-100 to +70 °C) ±0.5 % of mv (+70.1 to +1000 °C) |
±1 % of mv (-200 to -100.1 °C) ±0.3 °C (-100 to +70 °C) ±0.5 % of mv (+70.1 to +1000 °C) |
| Resolution | 0.1 °C | 0.1 °C | 0.1 °C |
Measuring rate: 10 sec - 24 hrs
Memory storage: 2 million readings
Data transfer via USB cable or optional SD card
Battery type: 1 x standard 3.6 volt Lithium AA(TL-5903) battery
Battery life: up to 8 years at a 15 minute measuring rate
Operating temp: -20 to +70 °C
Dimensions: 103 x 63 x 33 mm
Protection class: IP65
Note: The Testo 176 T4 requires additional temperature probes
The generic Lontek Type T or Type K thermocouple probes are both suit for this data logger. Alternatively, contact us to discuss you requirements and we will advise the best suited temperature probe for your application.
Testo Type K temperature probe
Type T temperature probe
Type K temperature probe
