Product Description

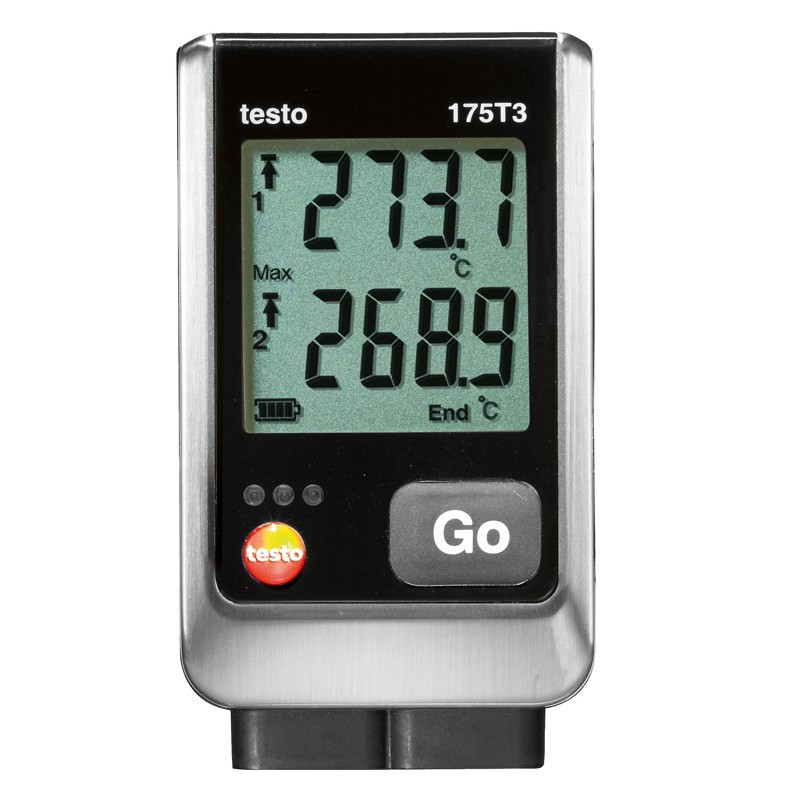

The Testo 175 T3 dual channel temperature data logger is great for a range of temperature applications where an external probe is required. Using standard Type T or Type thermocouples, you can select from a range of off the shelf temperature probes or have a custom probes made to your specification.
The testo 175 T3 data logger includes:
- Testo 175 T3 data logger
- Wall bracket with lock, USB cable, and batteries
- FREE Testo ComSoft software via download
- Calibration protocol
General technical data:
Channels: 2 x External Type T or Type K thermocouples
Channels: 2 x External Type T or Type K thermocouples
Standard mini thermocouple sockets for easy probe connection
Measuring range
- Type T Probe: -50 to +400 °C
- Type K Probe: -50 to +1000 °C
Accuracy: Type T and Type k probes
- ±1 digit
- -50 to +70 °C, ±0.5 °C
- +70.1 to +1000 °C, ±0.7 % of mv
Measuring rate: 10 sec - 24 hrs
Memory storage: 1 million readings
Memory storage: 1 million readings
Data transfer via USB cable or optional SD card
Battery type: 3 x standard AAA batteries
Battery life: up to 3 years at a 15 minute measuring rate
Operating temp: -20 to +55 °C
Dimensions: 89 x 53 x 27 mm
Protection class: IP65
Battery life: up to 3 years at a 15 minute measuring rate
Operating temp: -20 to +55 °C
Dimensions: 89 x 53 x 27 mm
Protection class: IP65
Note: The Testo 175 T3 requires additional temperature probes
The generic Lontek Type T or Type K thermocouple probes are both suit for this data logger. Alternatively, contact us to discuss you requirements and we will advise the best suited temperature probe for your application.
Testo Type K temperature probe
Type T temperature probe
https://www.lontek.com.au/sensors/type-t-thermocouple-sensor-teflon/
Type K temperature probe
https://www.lontek.com.au/sensors/type-k-thermocouple-sensor-teflon/Type K temperature probe
Testo 175 T3 data sheet
Testo 175 T3 manual
Testo 175 T3 manual
