Product Description
Discontinued Model
System Integration
The PowerScout 3 Plus (PS3P-I) is a device that needs some form of system integration to work out of the box. The PSP3 can be directly connected via MODBUS to a data logger such as the DataTaker DT80 or DT82I, you could connect the PSP3 to a SCADA or BMS network via MODBUS or BACnet and possibly to a computer running a third party software program.
Contact Lontek for more information about the PSP3 and typical applications.
The Dent PS-COMPAK-USB software & communications package is generally required for setting up the PSP3.
Required Current Transformers
You will need to select the size of some current transformers (CT) best suited for your typical monitoring application. Several main factors need to be considered when selecting the best suit CT.
- Maximum and minimum load current in Amps.
- The physical size of the cable the CT needs to fit around. Some cabling installations may have multiple grouped cables for load or voltage drop reasons.
- The physical space in the switchboard or electrical cabinet.
CT-HSC-020U - 20 Amp Mini current transformer.
CT-HSC-050U - 50 Amp Mini current transformer.
CT-HMC-0100-U - 100 Amp Midi current transformer.
CT-HMC-0200-U - 200 Amp Midi current transformer.
CT-CON-0150EZ-U - 150 Amp Clamp current transformer.
CT-R16-4A-U - 5-5000 Amp 400mm(16") RoCoil Flexible current transformer.
CT-R24-4A-U - 5-5000 Amp 600mm(24") RoCoil Flexible current transformer.

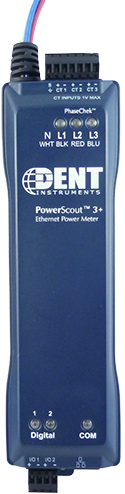

DENT Instruments PowerScout 3 Plus
Available as either an Ethernet or Serial device, DENT's PowerScout 3 Plus is a single-point 3-phase sub meter that is compatible with either BACnet or Modbus communications protocols. It was designed to provide timely and accurate consumption data necessary to gain the upper hand on electrical costs in today's escalating energy market. These meters can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostics and monitoring. PowerScout 3 Plus meters meet the stringent ANSI C12.20-2010 Class 0.2 accuracy standard.
Typical Applications:
- Load Profiling for forecasting and trending energy use.
- Energy Audits and Energy Surveys to determine demand profiles, manage costs, and monitor consumption.
- Verification Studies to validate energy savings measures.
- True RMS Current Reading for monitoring up to 3 branch circuits.
Dent Instruments PowerScout Plus 3 technical specifications. Download
