Product Description

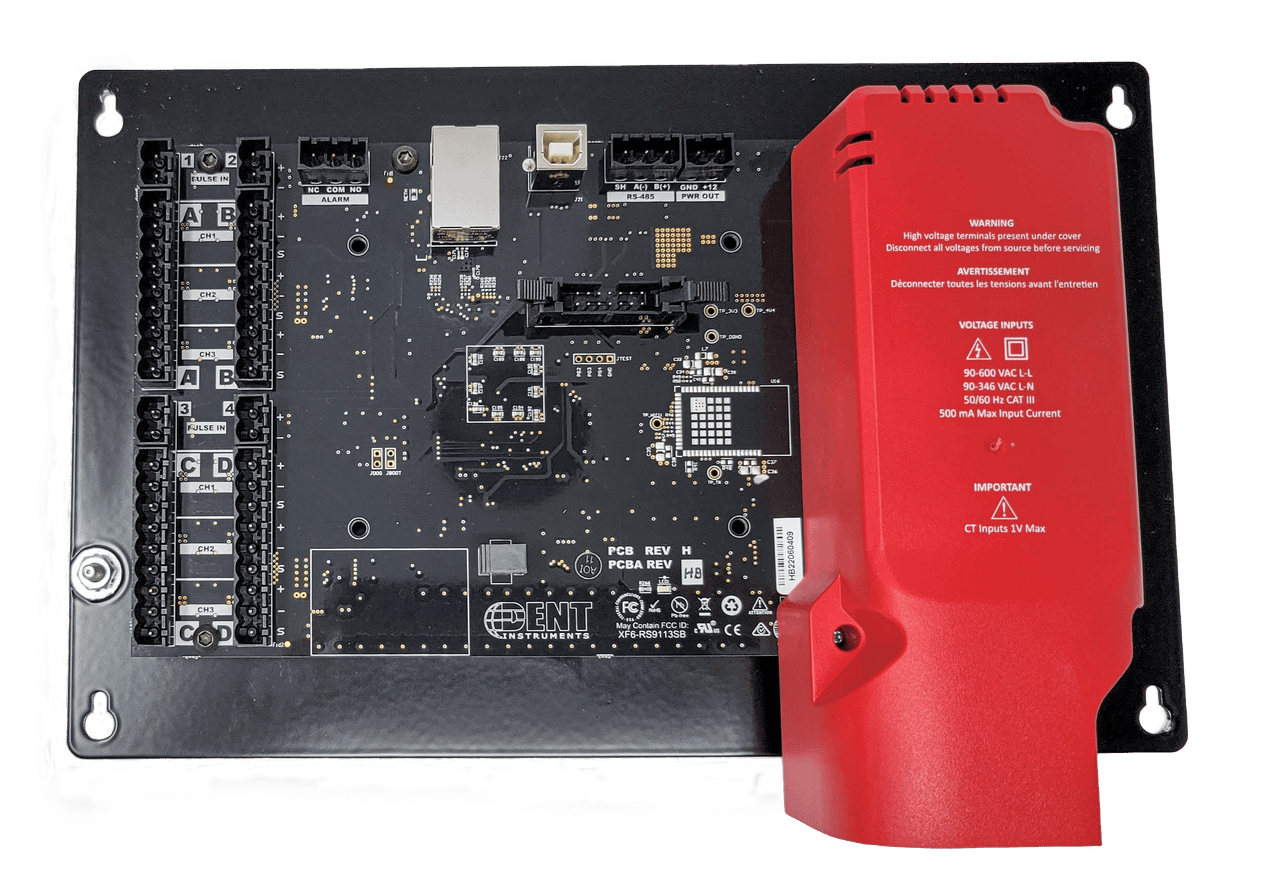

The PowerScout 12 HD is a versatile, multi-channel instrument that can be configured to monitor multiple electrical circuits simultaneously. It can be supplied with any of DENT’s split-core, solid-core, or RoCoil (Rogowski) CTs. Monitor any combination of up to 4 three-phase or 12 single-phase electrical devices with a single PowerScout 12 HD. With data updates every 1 second and ANSI C12.20-2010 Class 0.2 revenue grade accuracy (depending on CT), the PowerScout 12 HD is well-suited for data center monitoring, tenant submetering, and accountability metering in commercial, retail, and industrial facilities.
Dent Instruments PowerScout 12 HD technical specifications. Download
CT-HSC-020U - 20 Amp Mini current transformer.
CT-HSC-050U - 50 Amp Mini current transformer.
CT-HMC-0100-U - 100 Amp Midi current transformer.
CT-HMC-0200-U - 200 Amp Midi current transformer.
CT-HLC-0400-U - 400 Amp Midi current transformer.
CT-CON-0150EZ-U - 150 Amp Clamp current transformer.
CTRCFX16L1800A3MSTV1 - 5-1800 Amp 400mm(16") RoCoil Flexible current transformer.
CTRCFX24L4000A3MSTV1 - 5-4000 Amp 600mm(24") RoCoil Flexible current transformer.
CTRCFX36L4000A3MSTV1 - 5-4000 Amp 900mm(36") RoCoil Flexible current transformer.
