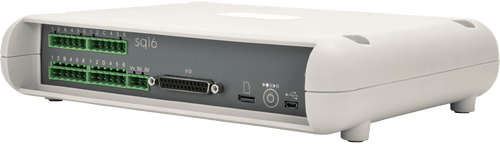

  • Grant Instruments sq16 data logger.

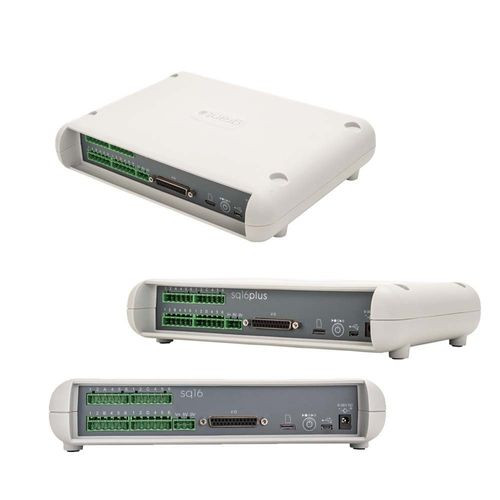

  • Grant Instruments sq16 data logger angles.
  • Grant Instruments sq16 and sq16plus comparison.

    • Grant Squirrel sq16 data logger

    Call for latest pricing

    (No reviews yet) Write a Review
    SKU:
    sq16
    Availability:
    Typically 2-3 weeks.
    Weight:
    1.50 KGS
    Width:
    36.00 (cm)
    Height:
    31.00 (cm)
    Depth:
    10.00 (cm)
    Shipping:
    Free Shipping

    Product Description

    Introducing the Grant Instruments sq16 data logger!

    The sq16 stands as Grant Instruments entry-level data logger, designed with an emphasis on extended battery life, catering perfectly to both portable and routine data logging needs. Its intuitive operation makes it an ideal choice for various applications without the necessity of a PC onsite. Simply utilize the multi-function button for hassle-free start and stop functionality, all while keeping track of the logger's status.

    Key Features

    • Effortless Operation: Start logging instantly with simple setup straight out of the box.
    • Extended Battery Life: Enjoy prolonged operation and unmatched portability.
    • Rugged Design: Built to withstand environmental challenges, ensuring durability and reliability.
    • Versatile Connectivity: Equipped with Bluetooth and USB options for seamless connectivity.
    • Expandable Memory: Store up to 250 million readings onboard and configure up to 6 logger setups.
    • Data Transfer Flexibility: Utilize the SD Card slot for convenient field data retrieval or leverage the SquirrelView app/software for seamless data download and export.

    Whether for portable monitoring, environmental studies, vehicle and transport applications, or general industrial monitoring, the SQ16 is engineered to meet and exceed your diverse application requirements.

    Box Contents

    • sq16 data logger
    • Mains Adapter MPU 12V
    • USB cable
    • AA Batteries x 6
    • Current shunt resistors for -30 to 30mA and 4 to 20mA inputs, 10Ohms x 4
    • Sensor Connectors, 6-way x 4, 3-way x1 with cable ties
    • Getting Started Guide (this booklet)
    • Warranty Card

    Grant Instruments sq16 specifications. Download

    Grant Instruments sq16 overview brochure. Download

    Grant Instruments sq16 Getting Started manual. Download

    Grant Instruments sq16 Operating manual. Download

    Specifications

    No of channels single ended 16 single ended or 8 differential inputs
    Universal input  Yes* *2 wire probes (not 3 or 4 wire resistance)
    Voltage ranges; differential and single ended -25 to 50V, -1.5 to 2.5V
    Common mode  60V
    Current ranges, differential (requires shunt) 4 to 20mA, -30 to +30mA
    Thermocouple ranges; differential and single D-type 0 to 2320°C
      K-type -200 to 1372°C
      R-type -50 to 1768°C
      B-type 250 to 1820°C
      T-type -200 to 400°C
      S-type -50 to 1768°C
      C-type 0 to 2320°C
      N-type -200 to 1300°C
      J-type -200 to 1200°C
      D-type 0 to 2320°C
    Resistance ranges, all 2 wire 0 to 300,000Ω
    Thermistor ranges U, UU, Y & S - type -50 to +150°C & customer specific thermistors
    Pt100/1000, 2-wire -200 to 850°C
    Internal reference temperature -55 to 150°C
    Pulse count ranges 0 to 100Hz (2 input) 0 to 64kHz (2 input)
    Digital state/event ranges 0 to 34,360,000,000 count; 8 state inputs or 1 x 8 bit binary
    Digital/alarm outputs 4 open drain FETs, 40V, 0.1A
    A/D resolution 32 bit
    Accuracy 0.1% of range + 0.1% of reading
    Clock resolution/accuracy 1s/10ppm
    Sampling rates 1, 2 4 or 8 readings per second
    Data statistics Yes from within new SquirrelView plus PC software
    Calculated channels Yes, up to 16
    Memory internal 4GB, approximately 200 million readings
    Multi function button LED Status indication and start/stop
    Internal battery 6 x AA cells
    Battery life up to 6 months all channels logging every 15 minutes
    External power Yes, 8 to 38v dc or via USB
    Sensor power output 8-38V at 150mA when connected to external power supply
    Networking Via USB or open thread
    Modem support Via USB hub
    Actions triggers PC setup Four alarm outputs, fully configurable actions and triggers
    Front panel setup Yes, SquirrelView compatible.Via smartphone app. All essential functionality available via app e.g. channel configuration, start/stop logging etc. Other advanced functions e.g. calculated channels and channel descriptions are available via connection to a PC running SquirrelView.
    Stored setups 6
    Operating temperature -20 to 65°C
    Dimensions (w x d x h)/ weight 257mm x 206mm x 57.3mm, 1.5kg
    Working environment - 30 to 65°C, RH up to 95% (non-condensing)

    Other Details

    1 year warranty.
