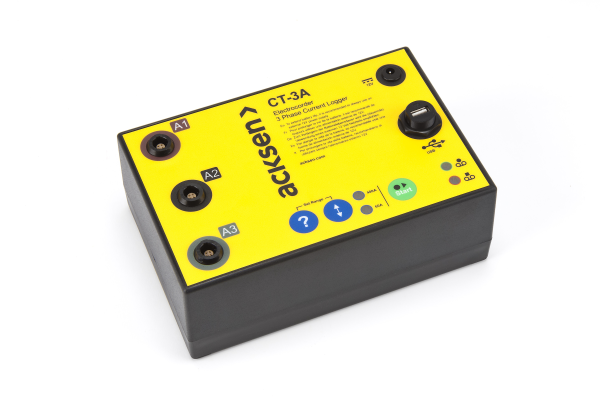

  • Electrocorder CT-3A-RS energy logger.

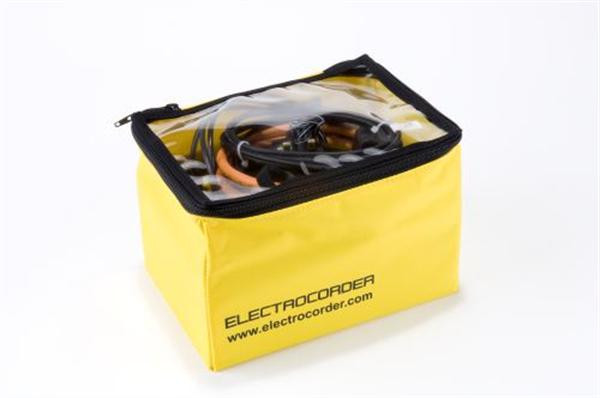

  • Electrocorder carry case.

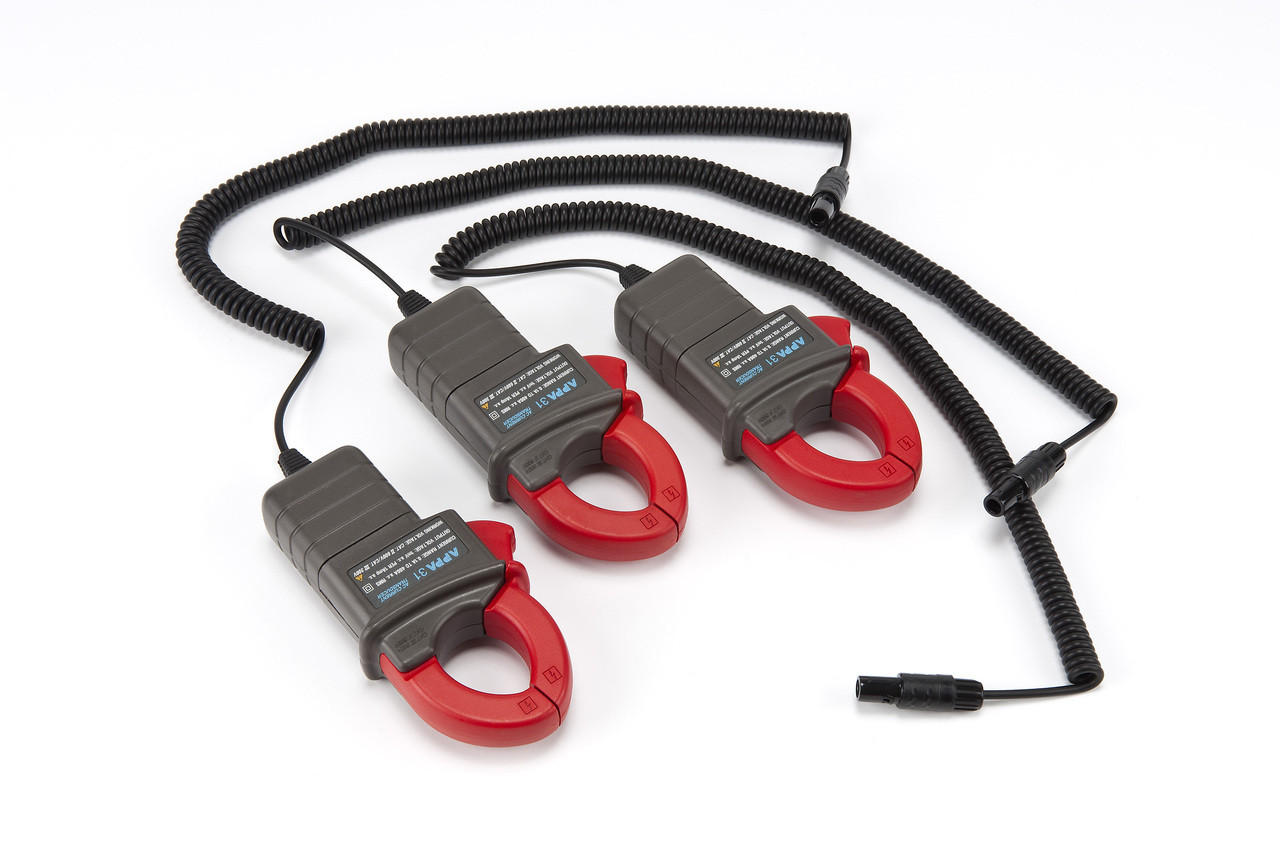

  • Electrocorder current clamps.
  • Electrosoft software.

    • Electrocorder CT-3A-RS

    $1,094.50 inc. GST
    $995.00 ex. GST
    (No reviews yet) Write a Review
    SKU:
    CT-3A-RS
    Availability:
    Discontinued.
    Weight:
    3.00 KGS
    Width:
    26.00 (cm)
    Height:
    19.00 (cm)
    Depth:
    19.00 (cm)

    Product Description

    Discontinued Model

    Electrocorder CT-3A-RS - now with Dual Range!

    The new Range Select button allows you to choose between two measurement ranges 1-60 Amps & 4–400 Amps. per phase.

    • Type: Three Phase Current Logger.
    • Measurements/Calculations: V, A, PF, kW, kWh, kVAR, kVA.
    • Inputs:
      • Current - Dual Range, 1-60 Amps & 4–400 Amps.
    • Sampling rate: Continuous, 16 samples per cycle 800Hz @ 50Hz.
    • Logging rate: 1 sec to 1 hr.
    • Memory: 10 mins gives 50 days logging, 1 hr gives up to 300 days logging.
    • PC Connection: USB.
    • Data transfer: Direct to PC via USB cable.
    • Power: Mains plug pack powered or battery powered for 3 months.
    • Software: Software included.

    CT-3A-RS Technical Specifications Download

    Other Details

    1 year warranty.
