Grant Instruments

Grant data loggers are built in the UK by Grant Instruments who have been manufacturing data logging equipment throughout its long history, initially in the form of portable multi-channel chart recorders for recording temperature and humidity, including chart recorders for paint oven profiling and similar data logging applications.

In the early 1980s Grant pioneered the development and use of portable solid-state data loggers when it introduced the Squirrel data logger, one of the first truly portable, microprocessor controlled data loggers in the world. To date, over 30,000 Squirrel loggers have been sold worldwide including the various units supplied by Lontek in Australia.

If you want good accurate data when using thermocouples or other temperature sensors, stick with a Grant data logger!

Grant SQ2010 data logger Grant SQ2010 data logger

This data logger is compact yet full of features.

  • Type: General purpose data logger.
  • Channels: 4 ~ 8.
  • Inputs: Voltage, 4-20mA, Temperature and Logic.
  • Speed: Max 100ms.
  • PC Connection: USB & RS232. Optional Modem & Ethernet.
  • Data transfer: Direct to PC via cable.
  • Software: Software included.

Grant SQ2020 data logger

Grant SQ2020 Simultaneous high and low speed sampling.

  • Type: General purpose data logger.
  • Channels: 8 ~ 16.
  • Inputs: Voltage, 4-20mA, Temperature and Logic.
  • Speed: Max 10ms.
  • PC Connection: USB & RS232. Optional Modem & Ethernet.
  • Data transfer: Multi Media card or direct to PC via cable.
  • Software: Software included.

Grant SQ2040 data logger

The SQ2040 is a data logger packed full of features yet easy to operate.

  • Type: General purpose data logger.
  • Channels: 16 ~ 32.
  • Inputs: Voltage, 4-20mA, Temperature and Logic.
  • Speed: Max 10ms.
  • PC Connection: USB & RS232. Optional Modem & Ethernet.
  • Data transfer: Multi Media card or direct to PC via cable.
  • Software: Software included.

Grant SQ2040 WiFi data logger

Grant SQ2040 The SQ2040 WiFi is a data logger packed full of features yet easy to operate.

  • Type: General purpose data logger.
  • Channels: 16 ~ 32.
  • Inputs: Voltage, 4-20mA, Temperature and Logic.
  • Speed: Max 10ms.
  • PC Connection: USB, WiFi & RS232.
  • Data transfer: Multi Media card or direct to PC via cable.
  • Software: Software included.

SquirrelView data logger software

Grant data loggers SquirelVeiw Software

  • Type: Data Logging Software.
  • Grant Squirrel SQ2010 Data Logger

    Grant Squirrel SQ2010 Data Logger

    The Squirrel 2010 is a versatile, general purpose data logger supplied in Australia by Lontek. With 4 to 8 analogue input channels to measure current, voltage, resistance and temperature, plus 8 digital channels. Grant Squirrel 2010 data logger is a...

    $2,060.00
    Add to Cart
  • Grant Squirrel SQ2010 Data Logger

    Grant Squirrel SQ2010 Data Logger Kit

    The Squirrel 2010 is a versatile, general purpose data logger supplied in Australia by Lontek. With 4 to 8 analogue input channels to measure current, voltage, resistance and temperature, plus 8 digital channels. Grant Squirrel 2010 data logger is a...

    $2,345.00
    Add to Cart
  • Grant Squirrel SQ2020 Data Logger Grant Squirrel SQ2020 Data Logger

    Grant Squirrel SQ2020 Data Logger

    Squirrel 2020 series offers high performance universal data logger packed with powerful features to provide great flexibility to handle a wide range of routine and demanding data logging applications. Hand-held and lightweight, the Squirrel 2020 models...

    $3,168.00
    Choose Options
  • Grant Squirrel SQ2020 WiFi Data Logger Grant Squirrel SQ2020 WiFi Data Logger

    Grant Squirrel SQ2020 WiFi Data Logger

    The Squirrel SQ2020 Wi-Fi hand held data logger combines high performance and universal inputs with the simplicity of Wi-Fi networking in a compact and easy-to-use instrument. Hand-held and lightweight, the Squirrel 2020 models are easy, fast and...

    $3,875.00
    Add to Cart
  • Grant SquirrelView Plus Software

    Grant SquirrelView Plus

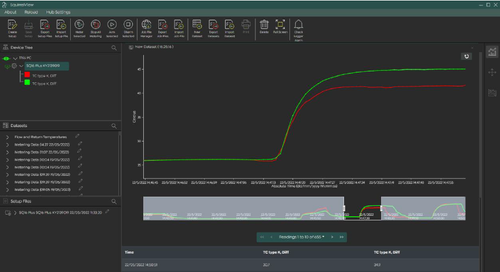

    SquirrelView Plus has all the features of SquirrelView with the additional benefits of allowing graphical analysis of historical and on-line data, whilst providing advanced reporting options. SquirrelView Plus allows quick and easily analysis of the...

    $530.00
    Add to Cart
